Diagnosing Webbing Edge Curling
Webbing described as curled may cup across its width, lift on one edge, twist after washing or change only after heat. The shape and trigger guide a useful investigation.
Content updated
In this guide
Key choices for your project
Lay affected and retained tape flat without hand tension after an agreed relaxation period. Photograph face, reverse, both edges and cross-section. Measure width and lift at several roll positions, then compare before and after the process that reveals the curl. Do not flatten samples before documenting them.
- Classify full-width cupping, single-edge lift, longitudinal twist and treatment-induced change separately.
- Compare left and right edge construction, face direction and roll position on affected and sound samples.
- Repeat only the relevant heat, wash, coating or sewing step on labelled control pieces.
One edge lifts only after heat transfer
Suppose a decorative tape lies flat when unrolled, but its right edge lifts after the logo transfer press. An unheated control from the same roll stays flat; a second heated piece cups across the full width when placed face down. Hand-stretching temporarily hides both shapes.
Preserve the relaxed before-and-after pieces. Classify one-edge lift and full-width cupping separately, then repeat the heat step with face, orientation, pressure and support recorded. Compare several roll positions before blaming one edge yarn or changing width.
Produce a trigger-and-shape map that separates original roll form, process-induced change and the effect in the intended assembly.
Use the curl shape to narrow the investigation
Symmetrical cupping can point toward an imbalance across the construction; one-edge lift suggests an edge-specific difference or uneven tension. A shape present immediately off the roll differs from one appearing after washing or heating. Fibre, weave, edge structure and processing interact, so no single visual symptom proves one cause. Compare construction records and multiple positions.
Judge acceptability in the intended assembly
A small relaxed lift may flatten harmlessly in a wide seam, while the same lift can prevent smooth buckle feeding or distort visible trim. Sew or thread the exact application after documenting the loose state. If a finish or coating is involved, compare an unprocessed control. Set an observable acceptance condition and measurement method rather than using “must lie flat” without conditioning.
Record shape, time and trigger
Show what moved, when it appeared and under which free condition.
Swipe to see all columns ↔
| Field | Record | Confirm |
|---|---|---|
| Shape class | One-edge lift, full-width cup, twist or combined form | Photograph face, reverse and end-on |
| Timing | Off-roll, after relaxation, after process or after storage | Retain labelled samples by stage |
| Conditioning | Rest time, temperature, humidity and absence of hand tension | Repeat the agreed relaxed setup |
| Location | Left/right edge, face direction and roll position | Mark orientation before cutting |
| Trigger | Heat, moisture, coating, sewing, winding or packaging condition | Run exposed and control pieces |
| Assembly effect | Feeding, seam appearance, contact, lift and usable width | Build the actual assembly |
Method and limits are project-defined. A symptom narrows the investigation but does not prove one cause.
Download specification worksheet ↓Separate the shape from the process that reveals it
Capture the untouched state
Quarantine the roll and photograph marked positions immediately after unwinding and after agreed relaxation. Do not iron, stretch or reverse-wind complaint samples first.
Classify and measure the form
Use separate records for edge lift, cross-width cup and longitudinal twist. Note direction, height or angle with the same support and viewing setup.
Challenge one suspected trigger
Expose a marked specimen to the relevant heat, wash, coating or sewing step while keeping an adjacent control unprocessed. Record orientation and settings.
Verify the product consequence
Thread or sew both pieces in the intended assembly. Decide from observable feeding, seam and appearance effects, then retain the matched evidence.
Three actions that erase diagnostic evidence
Pull the sample flat before photographing
Hand tension can remove lift or cup temporarily and destroys the relaxed baseline. Record the free shape first; document tensioned fit as a separate condition.
Call every deformation edge curl
One lifted edge, full-width cupping and longitudinal twist can involve different imbalances. Classify them separately before choosing samples or process checks.
Widen the tape to compensate
Extra nominal width may not correct the imbalance and can create hardware interference. Find the trigger and assess usable width in the assembly instead.
Questions before you choose
Should curled webbing be measured under tension?
Usually document the relaxed state first because hand tension can hide the defect. If the application uses controlled tension, record that as a separate assembly condition with a repeatable force.
What photos help diagnose edge curling?
Provide relaxed face and reverse views, an end-on cross-section, both edges, roll position and matched before-and-after treatment photos, plus a sound sample from the same construction.

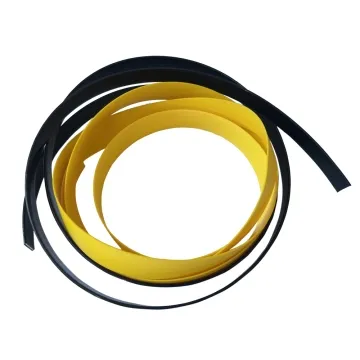

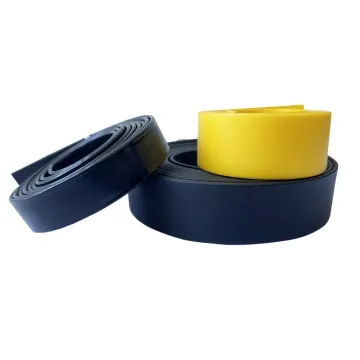

Products to start with
